Creating an AI-powered wearable watch for the protection of girls and women is a powerful idea. It would involve a mix of hardware, AI software, and secure communication systems. Here’s a full breakdown of the concept, features, and how to make it:
AI Safety Watch for Women – Concept Overview
Core Goal:
To detect danger, alert authorities, and provide real-time monitoring for girls and women through an AI-powered smart wearable.
Key Features:
- Voice/Sound Activation
- Detects keywords like “help,” “emergency,” or distress tones.
- AI analyzes panic in voice or scream.
- Motion & Behavior Tracking
- Uses accelerometer & gyroscope to detect sudden falls, being dragged, or abnormal movement.
- AI learns the user’s normal movement patterns.
- Location Tracking (GPS + Geo-fencing)
- Real-time tracking and alerts when entering dangerous zones.
- Sends live location to trusted contacts or police.
- Emergency Button
- Hidden button to activate silent alert and start audio/video recording.
- Camera & Audio Streaming
- Starts recording when AI suspects a threat.
- Streams live feed to police or trusted person.
- AI Emotion Detection (Optional)
- Detects increased heart rate, voice stress, and facial panic.
- Connectivity
- SIM card or paired mobile app via Bluetooth/Wi-Fi.
- Battery Optimization
- Low-power mode and efficient alerts.
Software Architecture
1. AI Models Needed:
- Voice Analysis Model: Trained to detect distress calls or keywords.
- Motion Pattern AI: Detects abnormal activity.
- Emotion AI (Optional): Face or voice-based emotion detection.
- Anomaly Detection: Triggers when patterns break.
2. Backend System:
- Cloud server (e.g., AWS, Azure) to:
- Receive alerts
- Store emergency footage
- Notify police/contacts
- API Gateway to connect apps, watch, and authorities.
3. Mobile App:
- Features:
- Contact list for alerts
- Map tracking
- Notification logs
- Control watch settings
How to Make It – Step-by-Step
Phase 1: Hardware
- Microcontroller: Raspberry Pi Zero W / Arduino with BLE
- Sensors:
- GPS Module
- Microphone
- Accelerometer
- Camera module
- Heart rate sensor (optional)
- Connectivity: GSM/SIM or Wi-Fi/Bluetooth
Phase 2: Software
- Train AI models using Python (TensorFlow, PyTorch)
- Use tools like:
- Google Teachable Machine (for audio classification)
- OpenCV + TensorFlow (for camera AI)
- Backend: Node.js or Python Flask for API and alert logic
- Database: Firebase or MongoDB
- Mobile App: Flutter or React Native
Phase 3: Integration & Testing
- Sync hardware and software
- Test in various scenarios (running, screaming, sudden stops)
- Ensure false positives are minimized
Safety & Privacy
- Use encryption (AES) for all communication.
- Recordings and data are only sent during emergencies.
- Allow user control via app for settings and permissions.
Would you like me to design a flowchart or UI design for the app and device? Or maybe a sample code snippet for the AI distress detection?
Great! Let’s start by designing a flowchart, a UI layout for the app, and a sample AI distress detection code snippet. This will help you visualize and begin building the AI safety watch system.

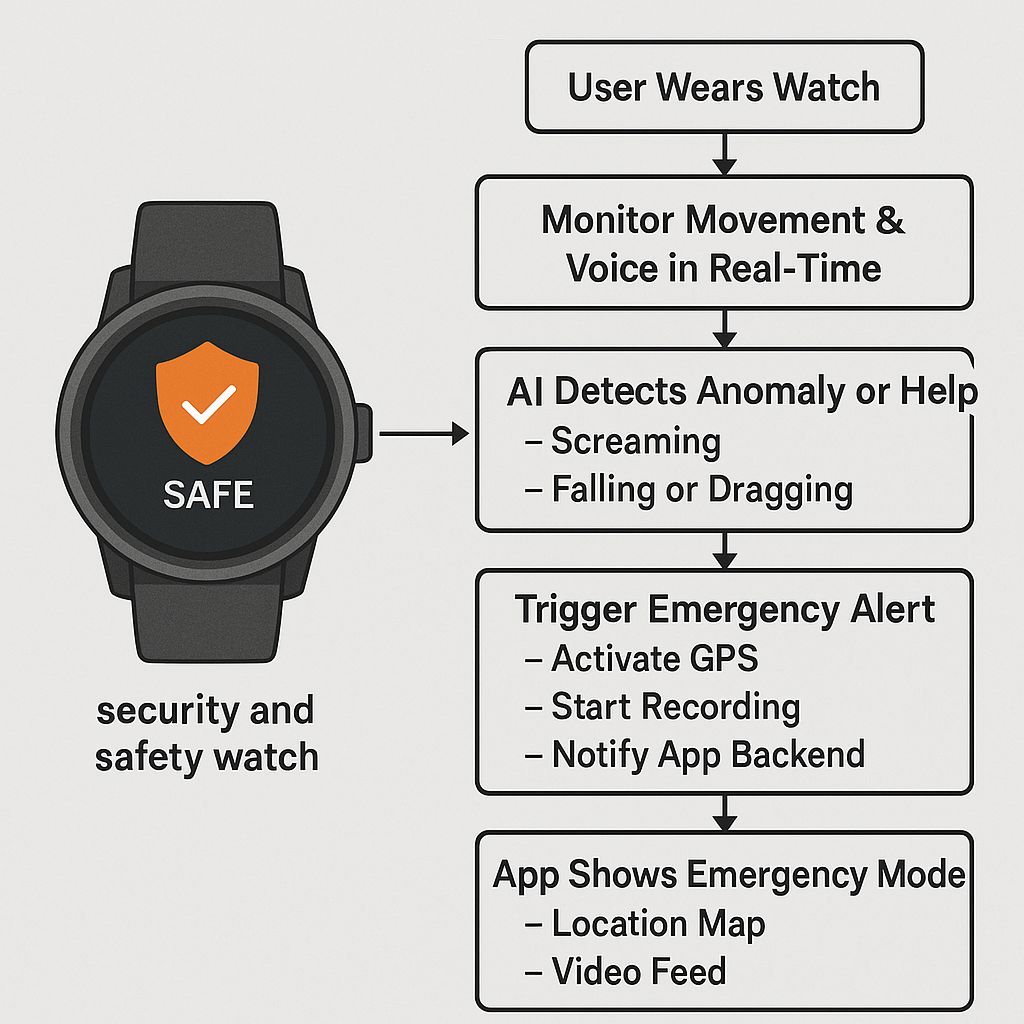

1. FLOWCHART – AI Safety Watch System
+---------------------+ | User Wears Watch | +---------------------+ | v +---------------------+ | Monitor Movement & | | Voice in Real-Time | +---------------------+ | v +-----------------------------+ | AI Detects Anomaly or Help | | - Screaming | | - Falling or Dragging | +-----------------------------+ | v +---------------------------+ | Trigger Emergency Alert | | - Activate GPS | | - Start Recording | | - Notify App Backend | +---------------------------+ | v +--------------------------+ | Send Live Feed to: | | - Trusted Contacts | | - Nearby Police Station | +--------------------------+ | v +--------------------------+ | App Shows Emergency Mode | | - Location Map | | - Video Feed | +--------------------------+
2. UI Design – Mobile App Layout
Home Screen:
- SOS Button (Red & Centered)
- Battery Level of Watch
- “Safe” / “Alert” Status
Emergency Contacts Tab:
- Add/Delete Contacts
- Enable Auto-notify
Live Tracking Tab:
- Map with Real-time Location
- Last Alert Info (Time + Location)
Video/Audio Feed Tab:
- Stream from Watch Camera
- Download/Share Button
Settings Tab:
- Toggle Features (voice detection, motion, geo-fencing)
- Set Safe Zones
- Pair Watch via Bluetooth
3. Sample AI Code Snippet (Distress Voice Detection)
Using Python and TensorFlow (simplified for prototyping):import tensorflow as tf import numpy as np import sounddevice as sd import librosa # Load pre-trained model model = tf.keras.models.load_model("distress_voice_model.h5") # Record audio def record_audio(duration=3, fs=16000): print("Listening...") audio = sd.rec(int(duration * fs), samplerate=fs, channels=1) sd.wait() return audio.flatten() # Preprocess and predict def detect_distress(audio): mfcc = librosa.feature.mfcc(y=audio, sr=16000, n_mfcc=13) mfcc = np.mean(mfcc.T, axis=0).reshape(1, -1) prediction = model.predict(mfcc) return prediction[0][0] > 0.8 # If over 80% confidence, trigger alert # Run audio = record_audio() if detect_distress(audio): print("Distress detected! Sending alert...") # Send alert to server or app here else: print("All good.")
This script assumes you trained a simple model on distress vs normal sounds using MFCC features.
Would you like me to mock up screenshots of the app UI, or give you a hardware wiring diagram for the smart watch prototype?
